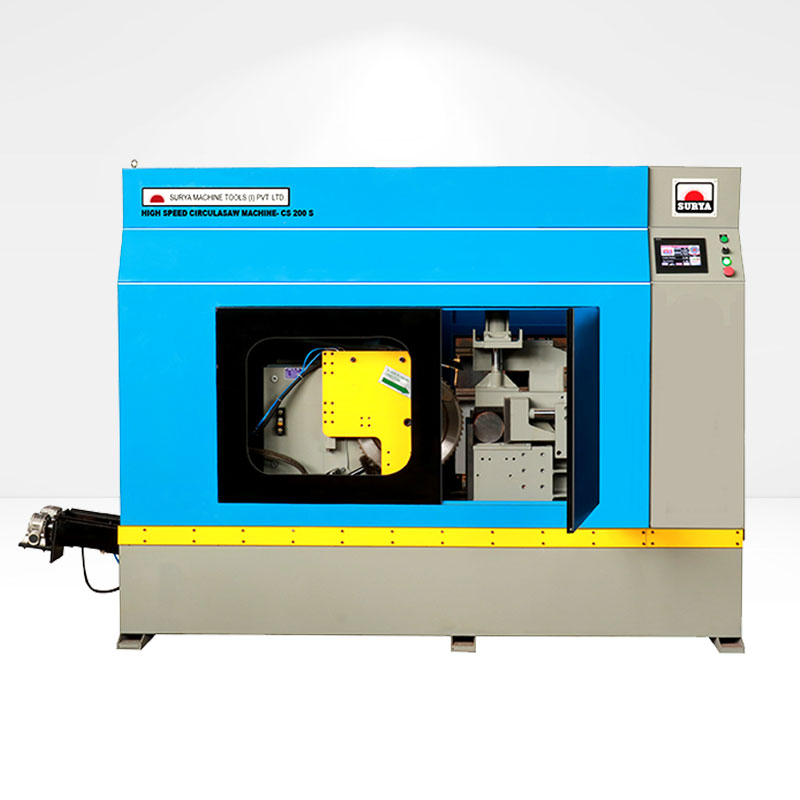

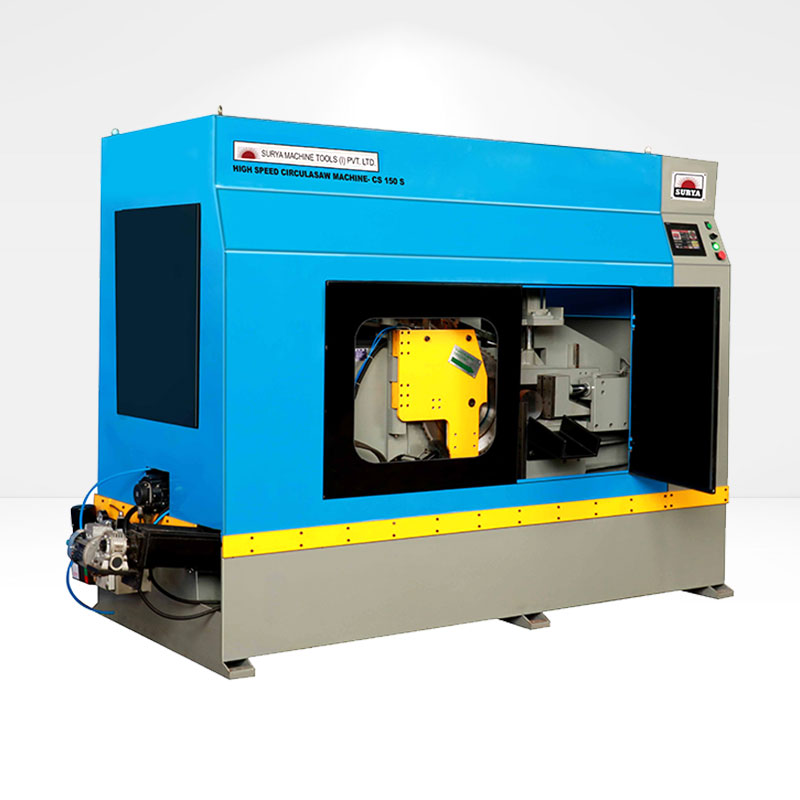

Metal Cutting Circular Saw Machine
Year Of Establishment 1991
Providing High-Quality Metal Cutting Circular Saw Machines
Are you looking for a reliable and efficient tool that effortlessly cut through various metals? Look no further! Surya Machine Tools India Pvt. Ltd. proudly presents its new brand Metal Cutting Circular Saw Machine, a state-of-the-art solution designed to meet all your metal cutting needs with precision and power. We are one of the renowned Metal Cutting Circular Saw Machine Manufacturers in India, offering top-quality products in a variety of specifications. Our commitment to delivering superior products and exceptional performance has earned us the trust of countless customers worldwide.
We have set up a cutting-edge infrastructure that spans a broad region and includes all necessary facilities. Our manufacturing facility has modern machinery and technologies that allow us to customize the range based on the precise information provided by the clients. Furthermore, we adhere to rigorous quality control measures for monitoring and managing the quality of our range in order to bring it up to industry standards.
Need Further Assistance With Our Products or Have Any Queries?
Error: Contact form not found.
Technical Details Of Metal Cutting Circular Saw Machine
| Specifications | SMT CS- 75S | SMT CS- 90S | SMT CS- 110S | SMT CS- 150S | SMT CS- 200S |
|---|---|---|---|---|---|
| Cutting Capacity in mm | |||||
| Round | 10-72mm | 15-90mm | 25-110mm | 260-150mm | 80-200mm |
| Square | 10-55mm | 15-70mm | 25-85mm | 60-105mm | 80-135mm |
| Rectangle | 10×10 To 45x75mm | 15×15 To 55x90mm | 25×25 To 70x100mm | 60×60 To 60x110mm | 60×60 To 60x140mm |
| Trim Cut In MM | 10 mm | 10 mm | 15 mm | 15 mm | 15 mm |
| Cutting Length in mm | 10-600 (in a single stroke) and 10-3000 (in multi-inducting) | 10-600 (in a single stroke) and 10-3000 (in multi-inducting) | 10-600 (in a single stroke) and 10-3000 (in multi-inducting) | 10-600 (in a single stroke) and 10-3000 (in multi-inducting) | 10-600 (in a single stroke) and 10-3000 (in multi-inducting) |
| Resedue / End Piece | 45-70 mm | 45-70 mm | 45-70 mm | 45-70 mm | 45-70 mm |
| Saw Blade Specifications | 285 mm Diameter x2mm | 315 mm Diameter x2mm | 360 mm Diameter x2.6mm | 460 mm Diameter x2.7mm | 600 mm Diameter x3.2mm |
| Number Of Teeth Z | 54, 60, 72, 80, 100 | 54, 60, 72, 80, 100 | 54, 60, 72, 80, 100 | 54, 60, 72, 80, 100 | 54, 60, 72, 80, 100 |
| Mounting Of Hole Size | Dia 63/4/Dia 11mm, 32mm Bore | Dia 63/4/Dia 11mm, 32mm Bore | Dia 90/4/Dia 12.5mm, 40mm Bore | Dia 90/4/Dia 12.5mm, 40mm Bore | Dia 90/4/Dia 12.5mm, 50mm Bore |
| Cutter Feed Mtr./Min. | 40-130 MPM | 40-135 MPM | 50-135 MPM | 50-135 MPM | 40-140 MPM |
| Cutting Feed MM/Sec. | 1-15 MM/Sec | 1-15 MM/Sec | 1-15 MM/Sec | 1-15 MM/Sec | 1-15 MM/Sec |
| Fast Approch MM/Sec. | 140 MM/Sec | 140 MM/Sec | 120 MM/Sec | 120 MM/Sec | 120 MM/Sec |
| Set Inch Lenght | 1-100 MM/Sec | 1-100 MM/Sec | 1-100 MM/Sec | 1-100 MM/Sec | 1-100 MM/Sec |
| Saw Motor Powder Kw | 7.5 Kw | 9.37 Kw | 11.25 Kw | 15 Kw | 20 Kw |
| Hydraulic Motor Kw | 1.5 Kw | 1.5 Kw | 1.5 Kw | 2 Kw | 2 Kw |
| Chip Conveyor Motor Kw (Opt.) | 0.37 Kw | 0.37 Kw | 0.37 Kw | 0.75 Kw | 0.75 Kw |
| Lubrication Motor Kw | 0.16 Kw | 0.16 Kw | 0.16 Kw | 0.16 Kw | 0.16 Kw |
| Machine Dimensions In MM Lenght x Weight x Height | 2100mm x 1600mm x 1550mm | 2250mm x 1600mm x 1700mm | 2450mm x 1760mm x 1900mm | 2650mm x 2000mm x 2260mm | 2650mm x 2000mm x 2260mm |
| Optional Auto Loader Dimensions Lenght x Weight x Height | 5000mm x 1200mm x 1000mm | 5000mm x 1200mm x 1000mm | 5000mm x 1200mm x 1000mm | 5000mm x 1200mm x 1000mm | 5000mm x 1200mm x 1000mm |
Get the Best Quality Metal Cutting Circular Saw Machine
We have established ourselves as one of the trusted Metal Cutting Circular Saw Machine Suppliers in India, recognized for our commitment to quality and customer satisfaction. We use the finest materials to craft our circular saw machines, guaranteeing their reliability and performance. The heart of our circular saw machine lies in its high-performance servo motor drive. The finely crafted cutting blade effortlessly slices through various metals, delivering clean and smooth cuts every time.
Whether you’re a seasoned professional or a novice in metalworking, our machine will undoubtedly become your go-to tool, delivering exceptional results each time you operate it. Invest in our Circular Saw Machine today and elevate your metal-cutting capabilities to new heights.
Exceptional Features Tailored to Meet the Needs of Various Industries.
Features Of Metal Cutting Circular Saw Machine
- Servo motor drive
- Precise and accurate cutting
- Safety guards and mechanisms
- Overload protection
Applications Of Metal Cutting Circular Saw Machine
- Metal Fabrication
- Construction and Engineering Sector
- Automotive Industry
- Metalworking Workshops
- Plumbing and HVAC
- DIY and Hobbyists
